507696 Drive Sprocket (As A Unit) - Pre-assembled Alloy Drive Sprocket Suitable for Claas Combine Ha

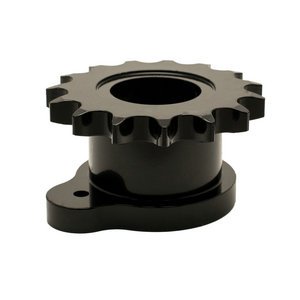

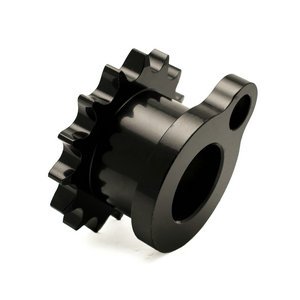

507696 Drive sprocket (as a unit) is complete pre-assembled power transmission sprocket designed for CLAAS combine harvester grain conveying system.

**Material features**: Made of high-grade alloy steel with quenched hardened tooth surface. Precision machined tooth profile provides outstanding wear resistance and impact toughness to withstand heavy torque, dust and continuous vibration in field harvesting conditions. This sprocket comes fully assembled as one unit with built-in bearings and bushings.

**Product characteristics**: This integrated drive sprocket meshes with roller chain to transfer power and drive grain conveying assembly. The complete unit can be installed directly without extra assembly work. Worn or broken sprocket teeth or seized internal bearings will trigger chain jumping, transmission jam and grain conveying interruption, causing costly downtime during harvest season.

**Compatibility**: Direct aftermarket replacement matching OEM 507696, fully compatible with CLAAS Lexion Combine, CLAAS Tucano Combine, CLAAS Jaguar Forage Harvester, CLAAS Conspeed Corn Header. Inspect the chain condition and adjust chain tension after installation. Install 507696 drive sprocket unit to restore stable grain transmission of your Claas harvester.

Weight, W kg 2.7
Inner diameter, d mm 55
Ouside diameter, D mm 135
Number of teeth, Z 15
Number of mounting holes, N 1
Diameter of mounting holes, Dm mm 9.5
Thickness , S mm 15.5
Chain pitch, p mm 25.4
Height, H mm 140
Thread, M M8
Ouside diameter, D1 mm 100
Ouside diameter, D2, мм , D2 mm 82
Width, B mm 73
